company introduction

Current location: Index>Company introduction

Haixinnuo
company profile

High standard, high demand, quality assurance

Qingdao Haixinnuo Machinery Co., Ltd.

Founded in 2008, Qingdao HaiXinNuo Machinery is a professional machinery company in the coastal city of Qingdao.

HXN has more than 60 sets of different kinds machining equipments such as CNC lathes, Swiss CNC Lathe machine, 4 Axis machining centers, 5 Axis machining centers, wire cutting machines, milling machines, drilling machines and other equipments at state-of-the-art.

We attribute our development to our 60 employees that includes 8 senior technical staff, 6 quality control staff and 6 administrative staff. We also have a sound quality control system and ISO9001 certification.

Our business is involved in the manufacturing of machinery parts, standard parts, customized parts, welding, fixture as well as the design and manufacturing of non-standard equipment parts.

The total value of output of 2020 is up to 5 million USD, exported to more than 20 countries. HXN products are widely used in flow control industry and various kinds of equipments.

2008
years
The company was founded in 2008
60
people
The company has 60 employees
30
million
The output value exceeded 30 million yuan
120
region
Exported to Europe and America and other countries and regions

Haixinnuo

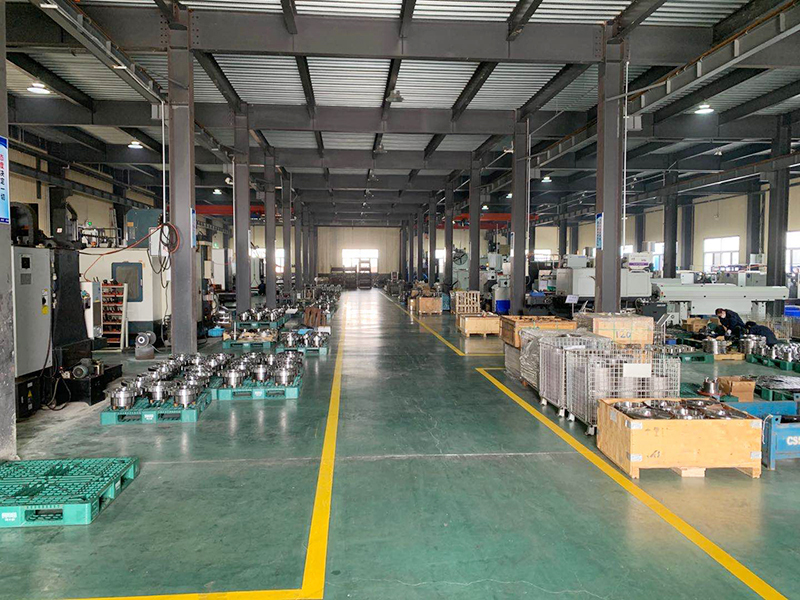

Workshop show

High standard, high demand, quality assurance

Haixinnuo
equipment introduction

High standard, high demand, quality assurance
CNC lathe

10 CNC vertical lathes (machining diameter 400-1200) and 24 CNC horizontal lathes.

42csl center lathe: double spindle, with servo feeder, the maximum processing diameter is 42mm, and 32 knives are combined with multi axis turning and milling.

Sw-32 center walking lathe: double spindle, with servo feeder, maximum processing diameter 32mm, 28 knives, multi axis turning and milling compound.

Ct2-52ym turning and milling compound: double spindle, 8-inch hydraulic chuck, double turret (16 knives for single turret, 32 knives for double turret), with y-axis, with servo feeder, truss manipulator, multi axis turning and milling compound.

Gv-780 Chengtai CNC vertical lathe: servo spindle, wire gauge, servo eight position turret, 24 inch hydraulic chuck, maximum processing diameter 820mm, length 600mm.

Rd7075 CNC vertical lathe: servo spindle, wire gauge, servo 12 position turret, 21 inch hydraulic chuck, maximum processing diameter 750mm, length 600mm.

Pv835 Doosan CNC vertical lathe: servo spindle, hard gauge, servo 10 station turret, 24 inch hydraulic chuck, maximum processing diameter 830mm, length 750mm.

Sz1000atc CNC vertical lathe: servo spindle + gearbox, hard gauge, 12 tool magazine, 40 inch hydraulic chuck, maximum processing diameter 1100mm, length 900mm.

Sz750 CNC vertical lathe: servo spindle + gearbox, wire gauge, 10 tool magazine, 24 inch hydraulic chuck, maximum processing diameter 850mm, length 750mm.

Sz550 CNC vertical lathe: servo spindle + gearbox, wire gauge, 10 tool magazine, 21 inch hydraulic chuck, maximum processing diameter 750mm, length 600mm.

Puma405 Doushan CNC lathe: inclined guide rail hard rail, servo spindle + gearbox, hard rail, hydraulic ten position rear tool rest, 15 inch hydraulic chuck, bar through hole diameter 117mm, hydraulic tailstock, processing diameter 590mm, length 1100mm.

V800 CNC lathe: inclined guide rail hard rail, servo spindle, hard rail, hydraulic 12 position rear tool rest, 12 inch hydraulic chuck, hydraulic tailstock, processing diameter 500mm, length 800mm.

V600 CNC lathe: inclined guide rail hard rail, servo spindle, hard rail, hydraulic 12 position rear tool rest, 10 inch hydraulic chuck, hydraulic tailstock, processing diameter 400mm, length 600mm.

Cnc450 CNC lathe: inclined guide rail hard rail, servo spindle, hard rail, hydraulic eight position rear tool rest, 8-inch hydraulic chuck, hydraulic tailstock, processing diameter 300mm, length 450mm.

Cnc7130 CNC lathe: inclined guide rail wire gauge, servo spindle, wire rail, hydraulic eight position rear tool rest, 8-inch hydraulic chuck, hydraulic tailstock, processing diameter 300mm, length 450mm.

Lt-15 CNC lathe: inclined guide rail hard rail, servo spindle, hard rail, hydraulic eight position rear tool rest, 8-inch hydraulic chuck, hydraulic tailstock, processing diameter 300mm, length 500mm.

Gls2000e CNC lathe: inclined guide rail, servo spindle, servo 10 position rear tool rest, 8-inch hydraulic chuck, hydraulic tailstock, processing diameter 300mm, length 330mm, equipped with servo automatic feeder (maximum feeding diameter 42mm, feeding length 3000mm), receiving box, conveyor belt.

J300 CNC lathe: inclined guide rail, servo spindle, hydraulic eight position rear tool rest, 6-inch hydraulic chuck, hydraulic tailstock, processing diameter 300mm, length 400mm.

Gls2600l CNC lathe: inclined guide rail, servo spindle, servo 12 position rear tool rest, 10 inch hydraulic chuck, hydraulic tailstock, processing diameter 400mm, length 650mm.

Tx-8a CNC lathe: inclined guide rail, servo spindle, servo eight position rear tool rest, 8-inch hydraulic chuck, hydraulic tailstock, processing diameter 300mm, length 400mm.

Kx45 CNC lathe: inclined guide rail, servo spindle, hydraulic eight position rear tool rest, 6-inch hydraulic chuck, hydraulic tailstock, processing diameter 300mm, length 400mm.

CNC 6150 CNC lathe: the maximum processing diameter of the disc is 500 mm, and the maximum processing length of the shaft is 1000mm.

CNC 6163 CNC lathe: the maximum machining diameter of the disc is 600mm, the diameter of the spindle through hole is 130mm, and the maximum machining length of the shaft is 1000mm.

Machining center

1 gantry machining center, 12 four axis machining centers, 1 five axis machining center, 3 1 meter horizontal machining centers, 2 630 double station horizontal machining centers, 1 500 double station precision horizontal machining center, and 1 400 double station horizontal machining center.

Baide five axis machining center: mf500, five axis linkage, maximum machining size 500mm*400mm.

1000 horizontal machining center: stroke 1600mm*1000mm*1000mm, rotation diameter 1800mm, 360 ° rotation at any angle.

630 horizontal machining center: Double worktables, 40 tool libraries, automatic workpiece measurement, automatic tool measurement, travel 1050mm*750mm*900mm, rotation diameter 1300mm, 360 ° rotation at any angle.

Toshiba 630 horizontal machining center: 6 worktables, 240 tool libraries, automatic workpiece measurement, automatic tool measurement, stroke 1000mm*800mm*850mm, rotation diameter 1000mm, 360 ° rotation at any angle.

Mitsubishi 500 precision horizontal machining center: Double worktables, 40 tool libraries, automatic workpiece measurement, automatic tool measurement, four axis grating ruler, travel 700mm*650mm*750mm, rotation diameter 700mm, 360 ° rotation at any angle.

Kia 400 horizontal machining center: Double worktables, 40 tool libraries, automatic workpiece measurement, stroke 650mm*600mm*600mm, rotation diameter 700mm, 360 ° rotation at any angle.

2012 four axis gantry machining center: two lines and one hard, 24 manipulator tool magazine, with 500 four axes, the machining length is 2000mm, the machining width is 1200mm, and the machining height is 800mm.

1060 four axis machining center: hard rail, 24 manipulator tool magazine, machining length 1000mm, machining width 600mm, machining height 500mm.

850 four axis machining center: two lines and one hard, 24 manipulator tool magazine, with the fourth axis, the machining length is 900mm, the machining width is 550mm, and the machining height is 550mm.

Jiangze V12 four axis machining center: hard rail, 24 manipulator tool magazine, processing length 1200mm, processing width 660mm, processing height 670mm.

Jiangze V10 four axis machining center: wire rail, 24 manipulator tool magazine, which can process 1000mm long, 600mm wide and 600mm high.

V57 four axis machining center: wire rail, 32 manipulator tool magazine, machining length 1000mm, machining width 600mm, machining height 600mm.

Weili four axis machining center: wire rail, 24 manipulator tool magazine, processing length 1000mm, processing width 600mm, processing height 600mm.

Youjia vb-715a four axis machining center: hard rail, 24 manipulator tool magazine, processing length 1400mm, processing width 715mm, processing height 700mm.

Youjia vm-32sa machining center: three axis gauge, 24 manipulator tool magazine, machining length 800mm, machining width 500mm, machining height 400mm.

Turning milling compound

Two walking machines (one 42, one 32) and one double spindle double turret turning and milling compound.

42csl center lathe: double spindle, with servo feeder, the maximum processing diameter is 42mm, and 32 knives are combined with multi axis turning and milling.

Sw-32 center walking lathe: double spindle, with servo feeder, maximum processing diameter 32mm, 28 knives, multi axis turning and milling compound.

Ct2-52ym turning and milling compound: double spindle, 8-inch hydraulic chuck, double turret (16 knives for single turret, 32 knives for double turret), with y-axis, with servo feeder, rack analyzing manipulator, multi axis turning and milling compound.

Grinding machine

One 1-meter CNC cylindrical grinder and three flat grinders< br> One demaji mill

Inspection Equipment

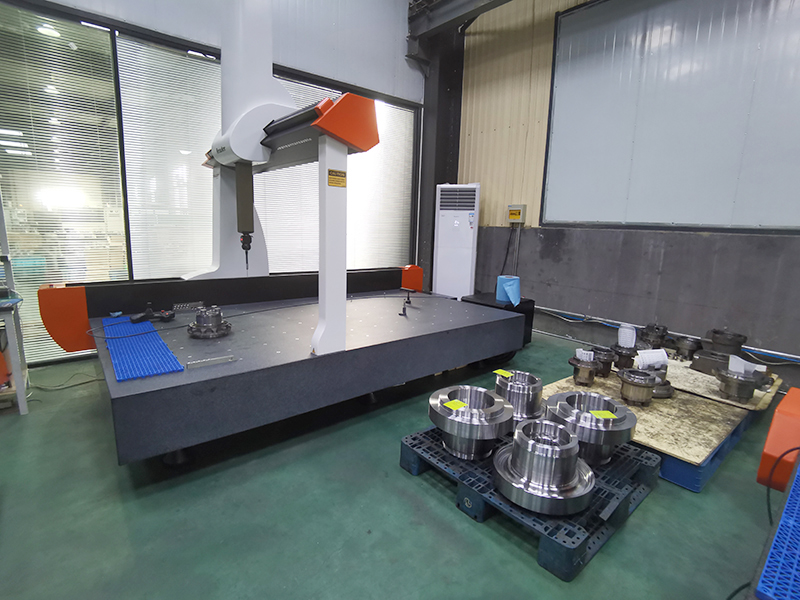

Three coordinates, imager, roughness meter, thickness gauge, hardness tester, etc.

CMM

NC8107

Leader

3

China

Projector

VML300

3DFamily

1

Taiwan

Roughness Detector

SJ-310

Mitutoyo

1

Japan

other

Turning milling, planing drilling, welding robots and other supporting mechanical equipment.

Haixinnuo
qualification certificate

High standard, high demand, quality assurance

There are 60 employees, including 8 senior technical personnel, 6 quality control personnel and 6 management personnel.

The company has passed the ISO9001 quality system certification
